SPECIFICATIONS
& DIMENSIONS

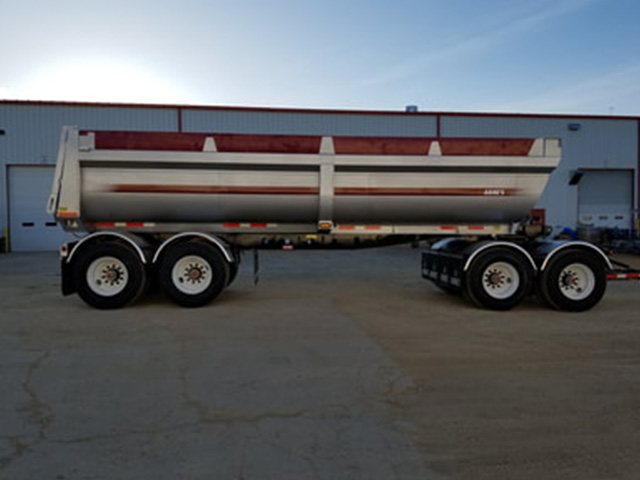

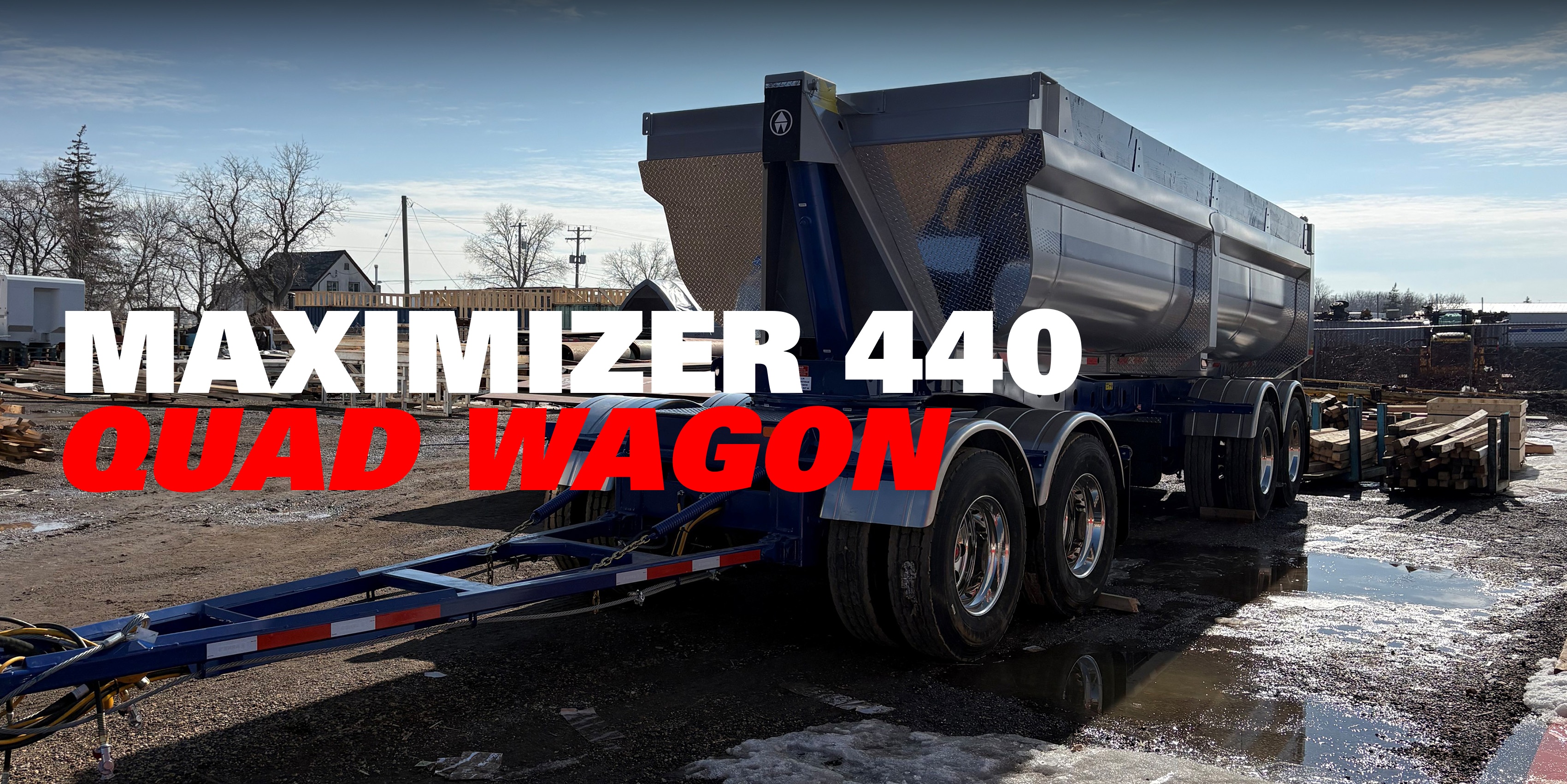

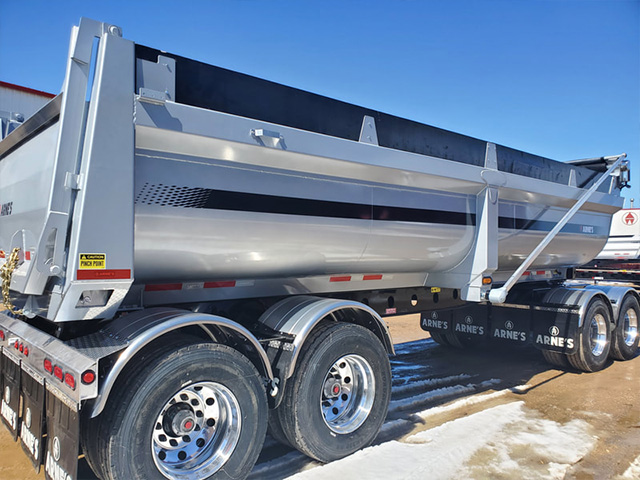

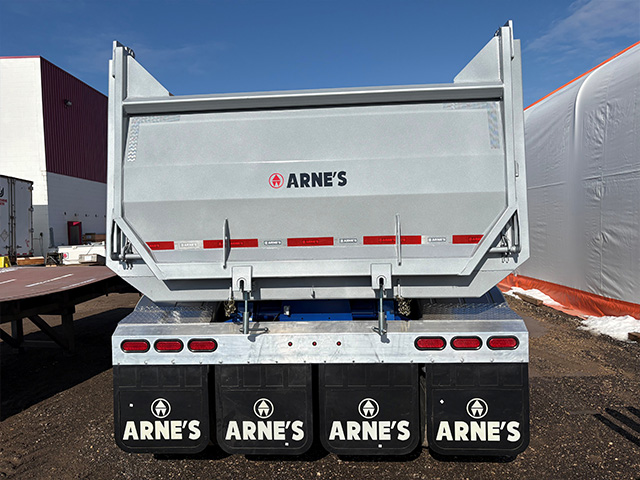

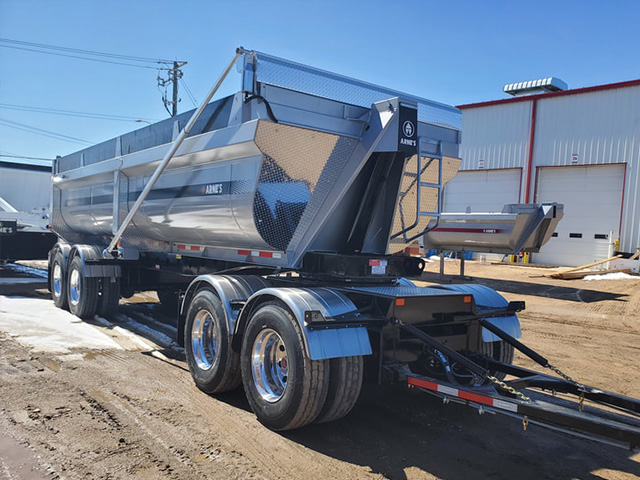

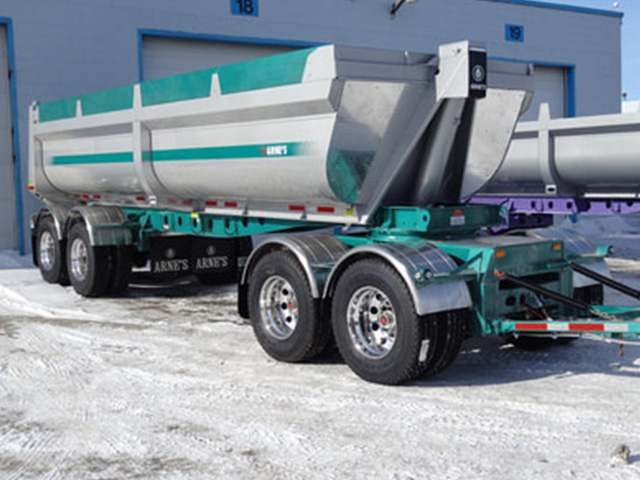

When the job demands more, the Maximizer 440 Quad Wagon rises to the challenge. Designed for serious hauling operations that refuse to compromise, this four-axle powerhouse delivers exceptional payload capacity while maintaining the stability and control your operators depend on.
The Maximizer 440's robust quad configuration distributes weight with precision, reducing wear on roads and equipment while maximizing every single load. Whether you're moving aggregate, grain, or heavy bulk material across long hauls or rugged terrain, the 440 Quad Wagon is built to outlast, outhaul, and outperform — every time.
| Overall Height | 9' 5" |
| Overall Length | 42’ 8.5” |
| Axle Spread | 50" |
| Axles | 77-inch track, 25,000 pound capacity per axle, oil seals |
| Tongue Length | From Center of forward axle to center of eye 204” |
| Wall Height | 43" |
| RTAC Compliant | YES |
| Body Capacity | 23.5 cubic yard capacity |
| Hoist | 8-inch, 5 stage, 235 inch stroke, head lift telescoping hydraulic cylinder |
| Suspension | Intraax AA25K air ride, 25,000 pound capacity per suspension |
| Box Front | 4mm AR450, Flat Front |
| Box Sides & Floor | 4mm AR450 Tub Style |
| Tailgate | 4mm AR450 formed one piece, gr 70 transport plated spreader chains |
| Tailgate Latch | Air trip with manual override |
| Wheels | Unimount 10 hole wheels with light weight hubs and drums, 8.25 x 22.5 |
| Tires | BF Goodrich, Cross Control 11Rx22.5 radial tires / Firestone T 819 |
| Ladder | Fabricated steel welded to the box |
| ABS | 2 sensor, 1 module |
| Fenders | Aluminum 1/2 Round |
| Lights | LED |
