SPECIFICATIONS
& DIMENSIONS

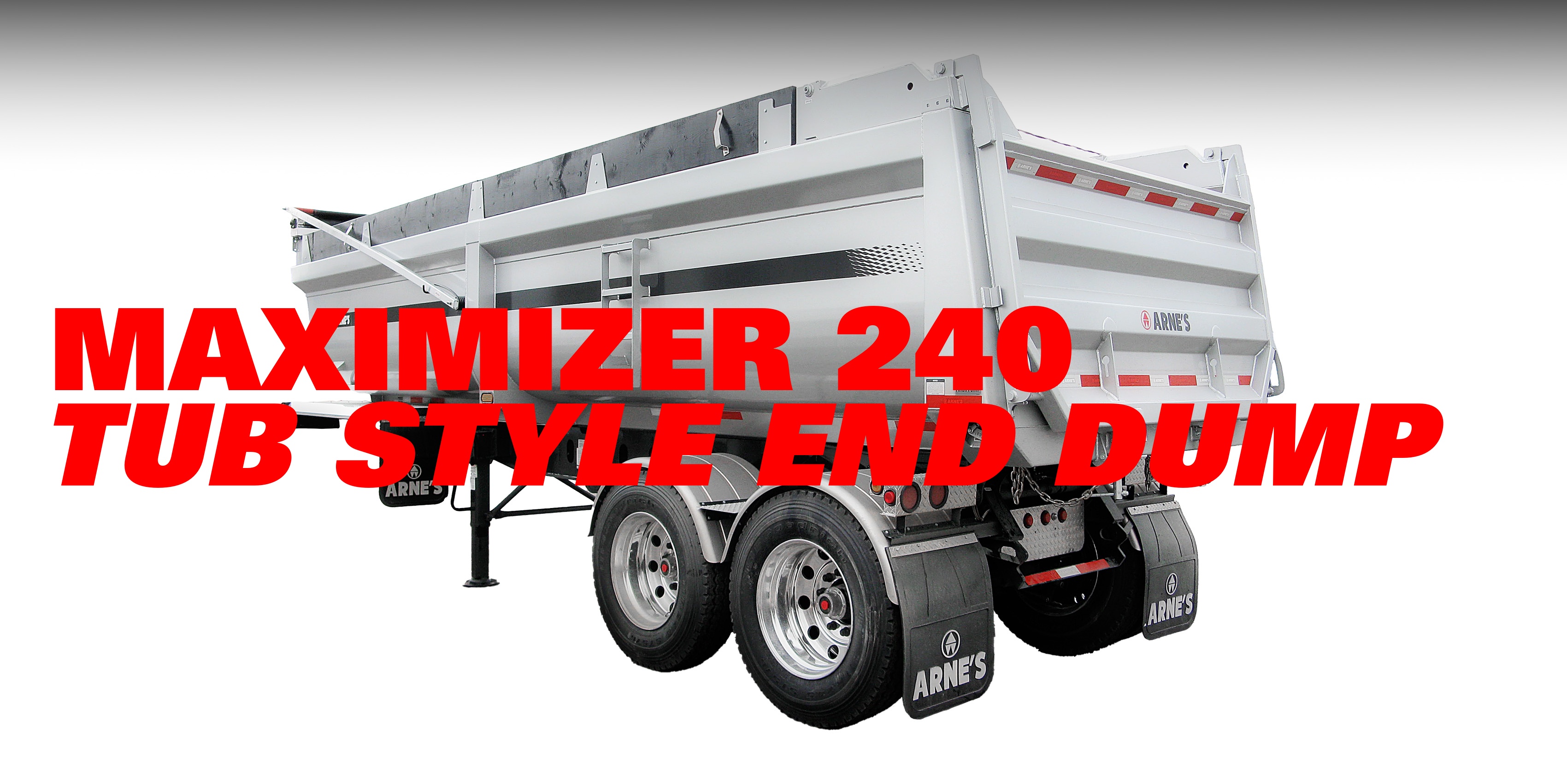

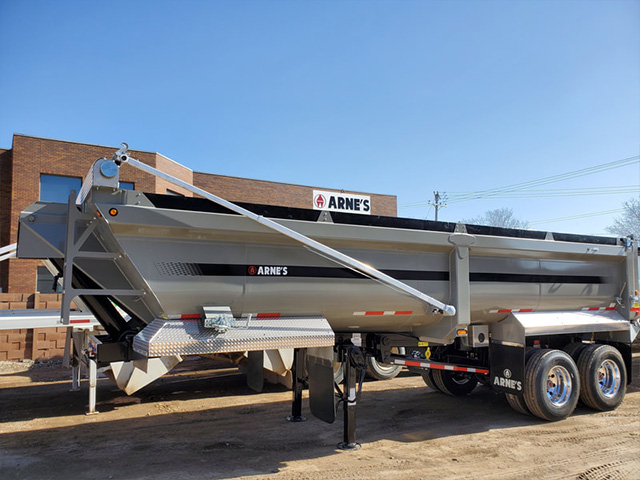

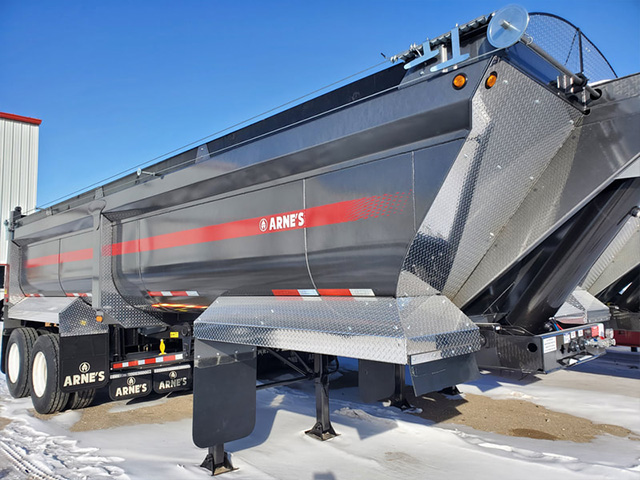

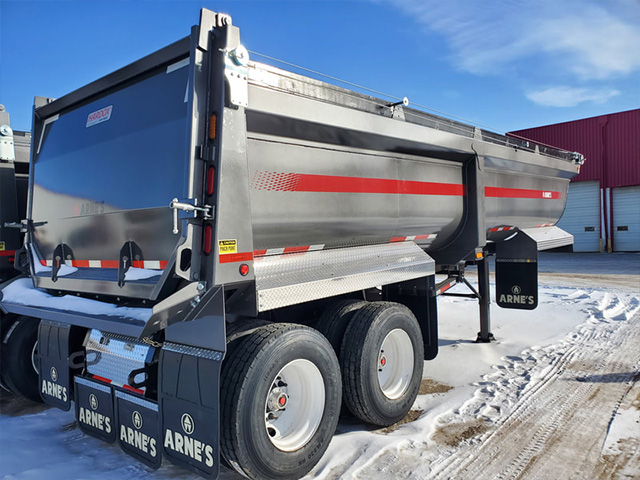

Introducing the Arne's Maximizer 240 Tandem Axle Tub Style End Dump. With a robust tub design, advanced hydraulic system, and precision load management, it delivers superior efficiency, durability, and reliability on every job site. Built to maximize uptime and minimize total cost of ownership.
| Overall Height | 9' 6" with a 50" Fifth Wheel |
| Overall Length | 29’ 7” |
| Axle Spread | 50" |
| King Pin Setting | 15", 84" Turning Clearance |
| King Pin Height | 50" |
| Wall Height | 50" |
| RTAC Compliant | YES |
| Body Capacity w/ 12" Boards | 29 cubic yard capacity |
| Hoist | Custom Hoist, 8-inch, 5 stage, 250 inch stroke, head lift telescoping hydraulic cylinder |
| Top Rail | Formed Steel Channel |
| Suspension | Intraax AA25K air ride, 25,000 pound capacity per suspension |
| Box Front | 3/16" 50000 Yield Steel |
| Box Sides & Floor | 4mm Hardox, AR450 |

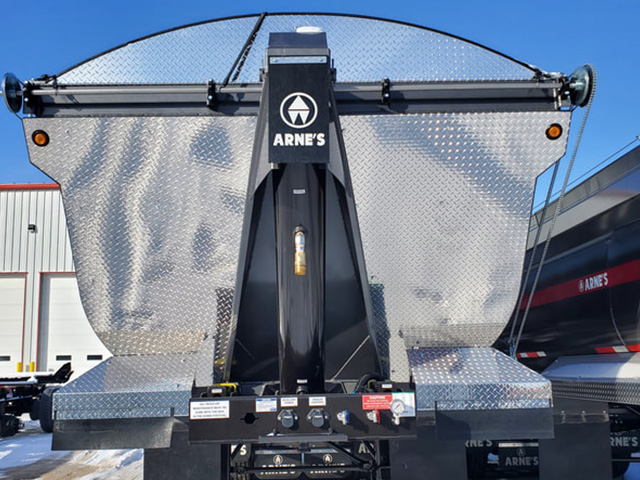

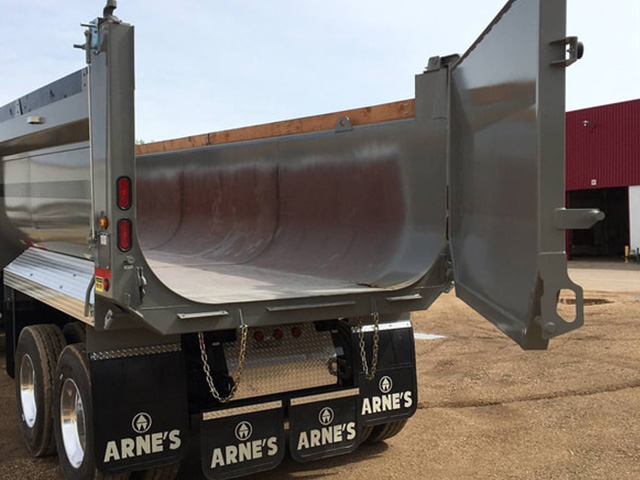

| Tailgate | 3/16" 50000 Yield Steel |
| Tailgate Latch | Air trip with manual override |
| Axles | 77-inch track, 25,000 pound capacity per axle, oil seals |
| Wheels | Unimount 10 hole wheels with light weight hubs and drums, 8.25x22.5 |
| Tires | BF Goodrich, Cross Control 11Rx22.5 radial tires / Firestone T 819 |
| Ladder | Formed steel welded to the box |
| ABS | 2 sensor, 1 module |
| Fenders | Aluminum 1/2 Round |
| Lights | LED |
