SPECIFICATIONS
& DIMENSIONS

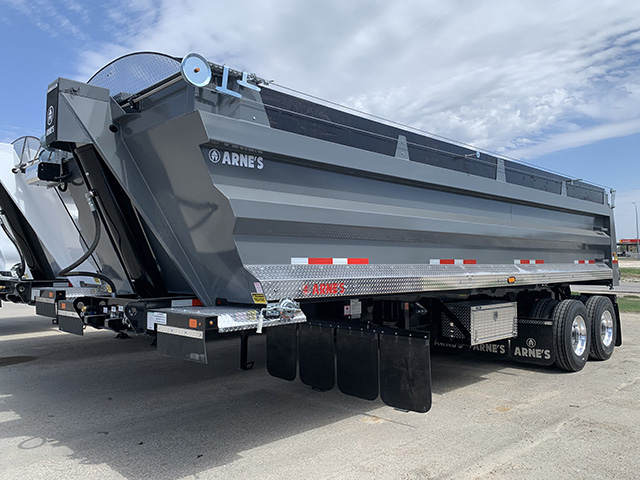

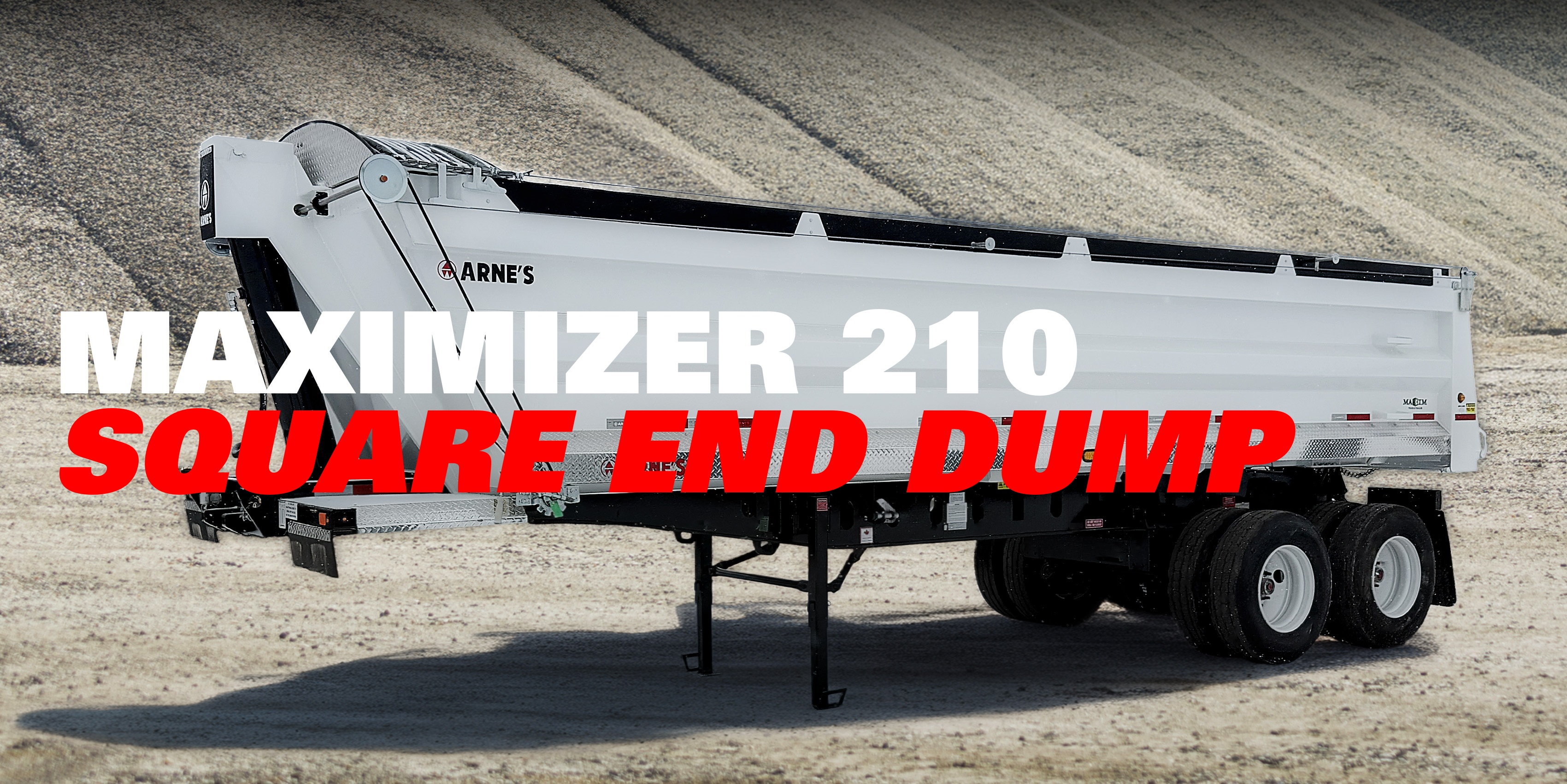

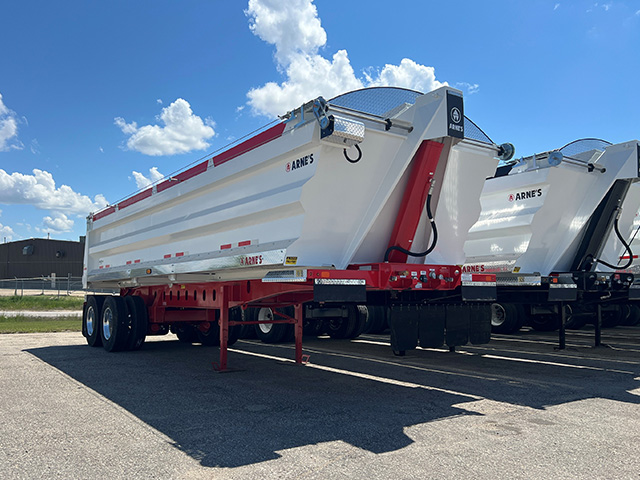

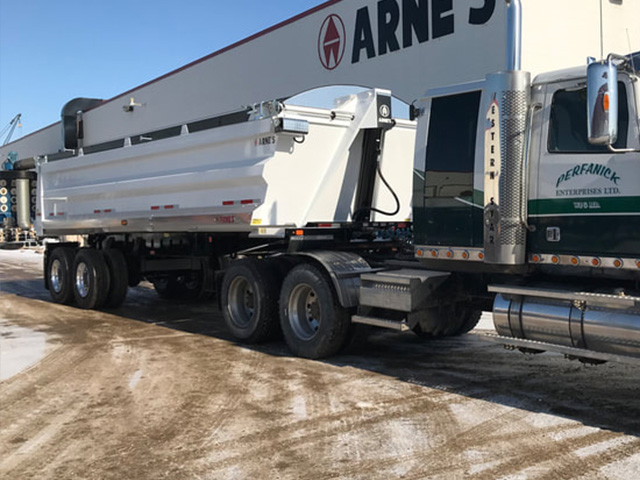

Meet the Arne's Maximizer 210 Tandem Axle Square Style End Dump — a compact powerhouse designed for nimble performance, steady stability, and quick material transfer. Its square-tub design, dependable hydraulics, and smart load control maximize uptime and efficiency on busy job sites. Built for reliability, versatility, and lower total cost of ownership.
| Overall Height | 9' 6" with a 50" Fifth Wheel |
| Overall Length | 29' 9.5" |
| Axle Spread | 50" |
| King Pin Setting | 15", 84" Turning Clearance |
| King Pin Height | 50" |
| Wall Height | 48" |
| RTAC Compliant | YES |
| Body Capacity w/ 12" Boards | 29 cubic yard capacity |
| Hoist | Custom Hoist, 8-inch, 5 stage, 250 inch stroke, head lift telescoping hydraulic cylinder |
| Top Rail | 7X5 inch steel tube Box Floor - 3/16 inch abrasive resistant 200 steel, edges rounded 90 degrees up 9 inches on each side |

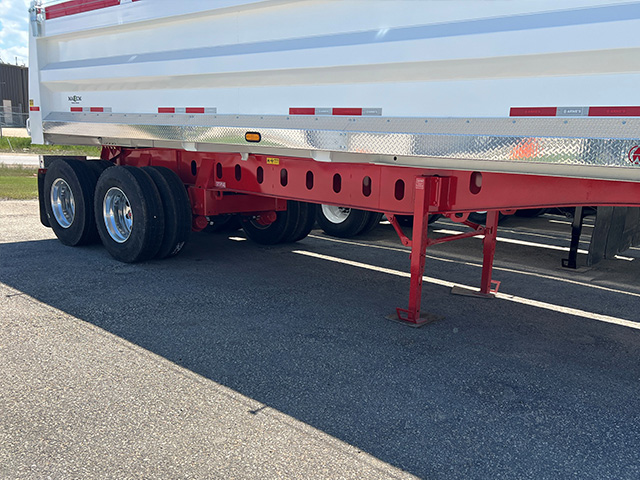

| Suspension | Intraax 25K air ride, 25,000 pound capacity per suspension |
| Box Front | 4mm AR 450, Flat Front |
| Box Sides | 12-gauge steel upper half with full length horizontal rib, 10-gauge steel lower half with no vertical seams |

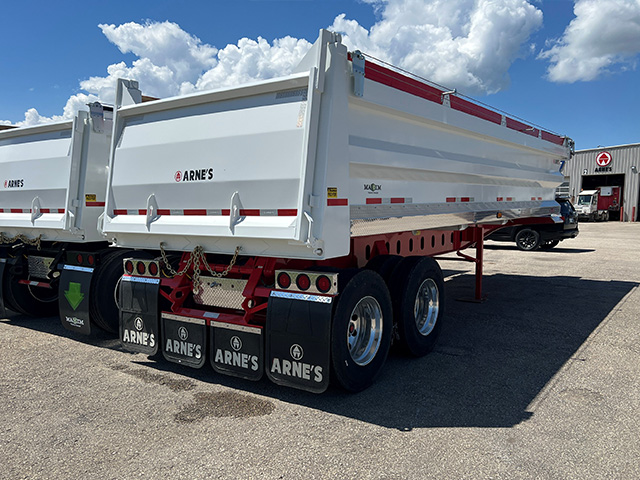

| Tailgate | 4mm AR 450 formed one-piece, plated spreader chains |
| Tailgate Latch | Air trip with manual override |
| Wheels | Unimount 10 hole wheels with light weight hubs and drums, 8.25x22.5 |
| Tires | BF Goodrich, Cross Control 11Rx22.5 radial tires / Firestone T 819 |
| Ladder | Formed steel welded to the box |
| ABS | 2 sensor, 1 module |
| Lights | LED, standard specifications |
