SPECIFICATIONS
& DIMENSIONS

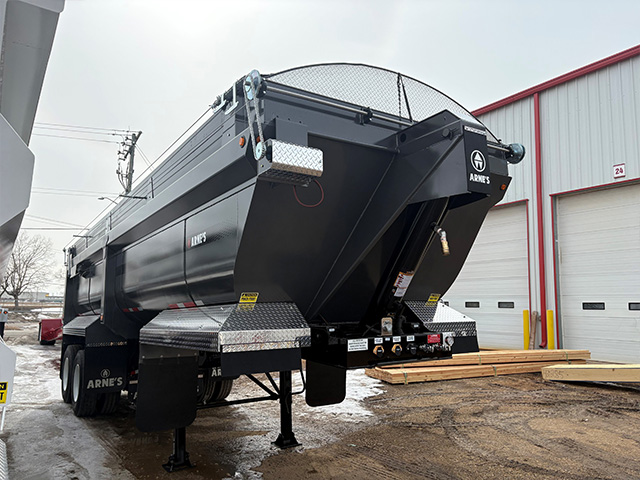

The Arne’s Quarter Frame steel end dumps use a scissor lift versus the full frame cylinder to lift the box. These units, also referred to as “Hybrid” or “Scissor” end dumps have an ideal weight to capacity ratio. Their overhang of 17 inches allows for asphalt work without an asphalt flaps. Typically spec’d with a two-way tailgate. With a width of 87” – they are among the largest in the industry. Made with the legendary Arne’s quality and durability.
| Overall Height | 9' 5" with 48" Upper Coupler Height |
| Overall Length | 31.5 Feet (377") Nominal |
| Floor Length | 25' 9" (310") |
| Axle Spread | 50" |
| King pin setting | 15" |
| Upper coupler height | 48" |
| Wall height | 50" |
| Overhang | 17" (From tire face to rear of box floor) |
| RTAC Compliant | YES |
| Body Capacity | 28 cubic yards |
| Hoist | Custom Hoist, 8", 5 stage, 235" stroke, head lift for approximately 48 degrees |
| Box Front | 1/4" AR450 |
| Box Slides & Floor | 3/16" AR450 |
| Top Rail | Formed Steel Channel |

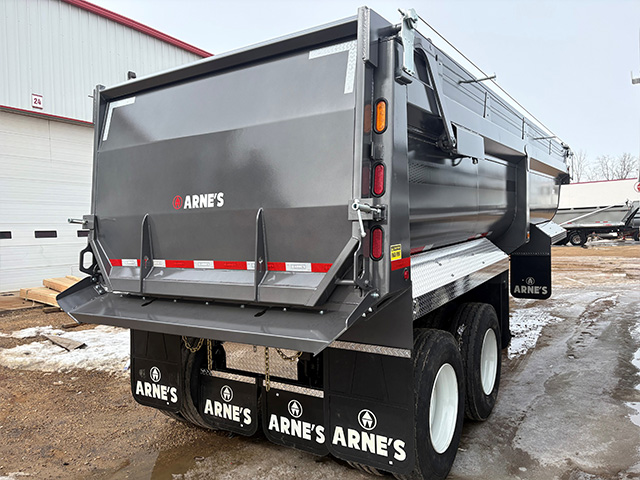

| Tailgate | 3/16" AR450 formed one piece, full height gate to top of post with plated spreader chains |

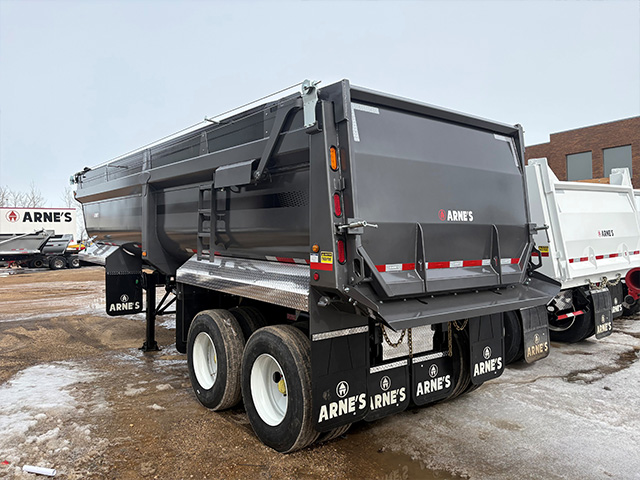

| Ladder | Left Rear Box |
| Suspension | Intraax AAT25K Air Ride Suspension w/ RTR Wheel Ends, Long Studs |
| Axles | 77 " track, 25,000 pound capacity per axle |
| Control Box for Max Valves | Mounted on Driver's Side in Front of Box Fender |
| Brakes | Light Weight Drum, 16.5" x 7" Shoes |
| Wheels | Unimount 10 hole with light weight hubs and drums, 8.25x22.5 |
| Tires | Cooper Roadmaster, HH230, 11R22.5 |
| ABS | 2 sensor, 1 module |
| Lights | LED Light Package with Tail Lights in Rear Posts |
| Tailgate Latch | Air Trip with Manual Override |
